Want to take care of small logs sawing right in the middle of the logging site? Then REXWOOD 40' shipping container installed sawmill with high quality reliable multi rip log saw for 80 to 250 mm logs of 6 m max length is the right choice to you. Completed with multirip saw for lumber thickness 25 to 150 mm with max width of 250 mm (shown in multirip attachment page) this mobile sawmill will help you to get valuable edged lumber from the logging site, leaving all sawdust and wood shavings behind, to be processed with logging site waste wood. Powered by fuel saving diesel generator installed in 20 ft shipping container REXWOOD sawmill will save fuel on logs trucking to the land sawmills. You will take from forest high valued, top profit lumber material only and can relocate within a day REXWOOD shipping container installed sawmill following logs source, SAVING TIME, MONEY AND WORKFORCE.
All REXWOOD equipment comes factory installed in 40' container with electrically open side ramps and consist of:
Electric motors operated log loading ramp installed on L 7.4 x W 2.4 meters side ramp operated by 24 V DC actuators.
Log feed rails length: 3 m.Work side ramp multi rip attachment installed on electric motors operated L 10.5 x W 2.4 meters side ramp operated by 24 V DC actuators.
7.6 kWt sawdust aspiration system dimensional/multirip saw connected with H 2000 mm x D 800 mm cyclone attachment and 3 meters cleaning hose.
Container Illumination: 4 x 65 Wt (3000 lumen) LED ceiling lights, 220 V AC.
Two tents: inter container span work tent L12 x W6 x 4.6 m and lumber sorting and storage tent L12 x W x 3.6 m
Each tent Illumination: 4 x 65 Wt (3000 lumen) LED ceiling lights, 220 V AC.

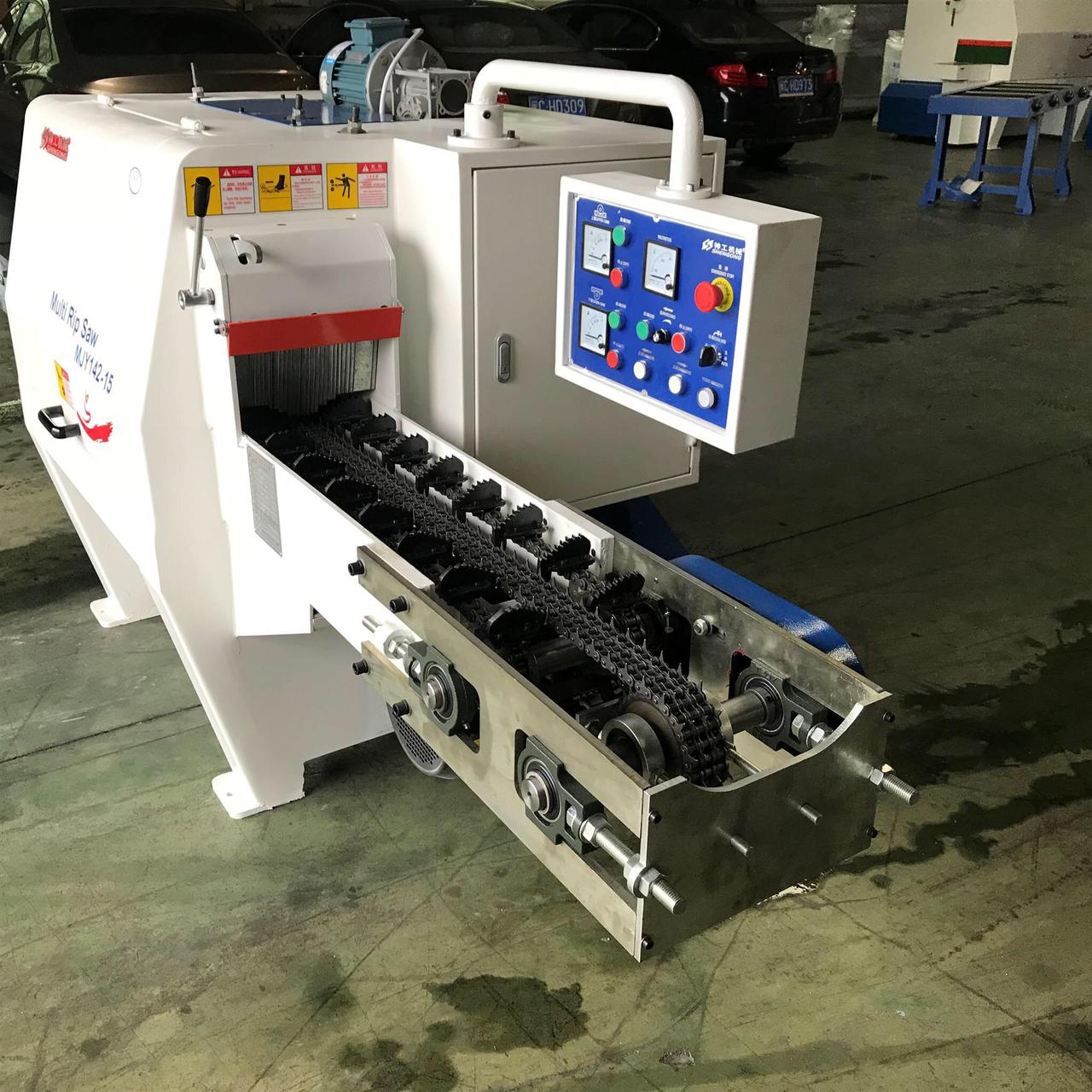

REXWOOD multi blade saw for logs
REXWOOD small log sawmill unit characteristics:
Log Multi rip saw material capacity:
80 mm to 250 mm diameter logs
800 mm to 6000 mm logs length
Saw blades: up to 10 x 360 mm saw discs (thickness 2.4 mm) with laser sights
Saw motors: 2 x 30 kWt electric
Automatic feeder 0-9 m/min
25 mm to 120 mm slab thickness
250 mm maximum slab width
500 mm to 6000 mm slab length
Saw blades: up to 10 x 360 mm saw discs (thickness 2.4 mm) with laser sights.
Saw motors: 2 x 25 kWt electric
Automatic feeder 0-12 m/min
